ASTILLEROS DEL CARIBE
HAVANA CITY, CUBA.
ENSENADA DE POTE Y ATARES
Phone:(537) 866 0172 / 73
FAX: 866 97 57
E-mail- mkt@asticar.telemar.cu

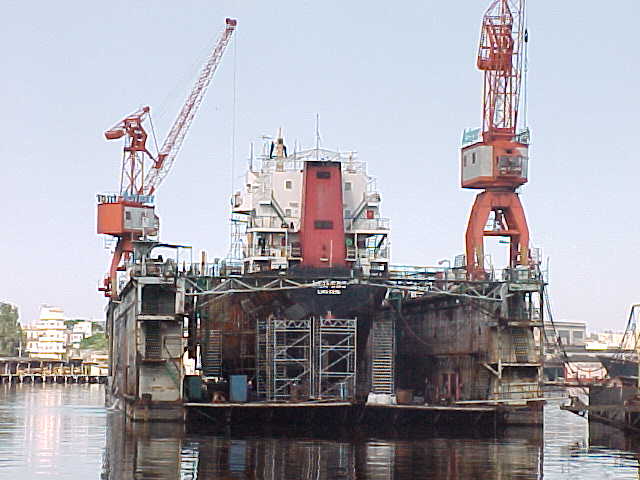

Floating Dock

• Lifting Capacity………………………………………. 4500 tons.
• Length………………………………………………… 100 mts.
• Breadth (int)…………………………………………….23.3 mts.
• Two cranes……………………………………………… 5 tons each.

Services to drydocked vessels

• Shore power supply: 380 v/50 Hz, 440v/60 Hz.
• Compressed air.
• Fresh water supply.
• Salt water supply for ballast, fire fighting and cooling purposes.
• Telephone connection.
• Protection System and Extinction of Fire.

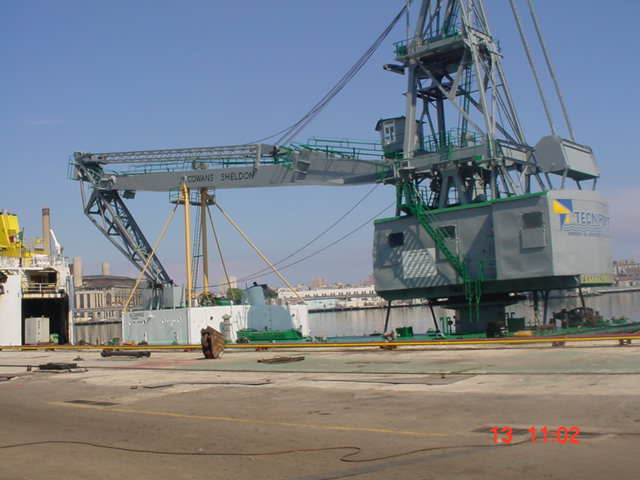

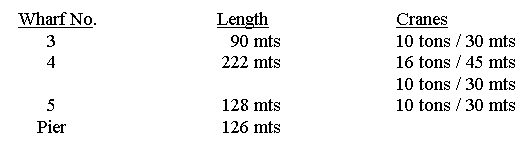

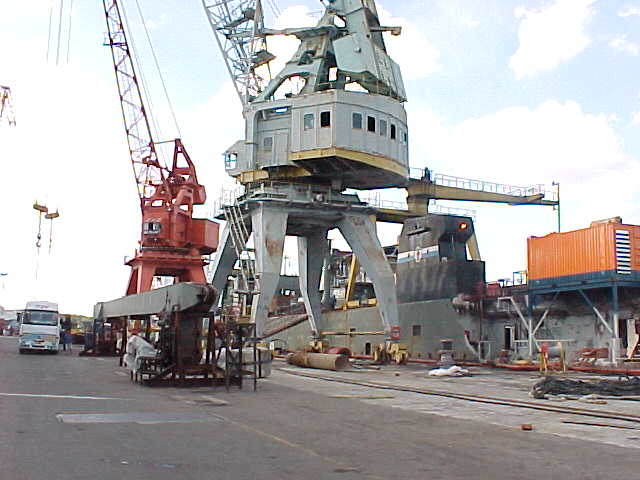

Berthing

Services in berth

• Power supply: 440v/60 Hz.
• Compressed air.
• Salt water supply for ballast, fire fighting and cooling purposes.
• Protection System and Extinction of Fire.

Steel Workshop

• Steel and aluminum plates’ renewal.
• Mc Gregor hatch cover repairs.
• Supply and installation of cathodic protection.

Surfaces Conservation Workshop

• Scrapping.
• Water washing with FW.
• Water blasting up to 300 Kg/cm².
• Chemical degreasing.
• Grit blasting up to SA 2 ½.
• Air less spray painting of surfaces.
• Cleaning fuel and ballast tanks.

Piping Workshop

• Construction and repair of all type of pipe systems: fresh water, salt water(ballast, fire fighting, cooling and bailing systems), oil, compressed air, hydraulic, sanitary, etc.
• Repair, renewal and testing of all types of valves, including bottom valves.

Mechanics and Machining Workshop

• Steering gears systems and propulsion mechanisms repairs, including controlled pitch propeller systems.
• Propeller repairs.
• Mechanical and chemical cleaning, rebuilding and repair of heat exchangers.
• Diesel engines and turbochargers repairs.
• Tail shaft and rudder systems repairs.
• Main and auxiliary diesel engines overhauling and repairs.
• Alignment of machinery. Chock fast resining.
• Deck and auxiliary naval machinery repairs.
• Machining works.
• PV valves repairs.

Installations and Electric Equipment Workshop

• Repairs of: AC and DC electric motors and generation units, switchboards, controls, transformers, power and lighting systems
• Electric rewinding up to 250 Kw.
• Low and medium tension electric switchboards fabrication.

Carpentry Workshop

• Carpentry works in general
• Manufacture of naval furniture.
• Works with epoxy resin and fiber glass.
• Repair and renewal of cargo hold and hatch cover insulation.

Liferafts Services Station

• Unique in all the country specialized in checking up and repair of liferafts.
• Change of outfit and pyrotechnics.
• Certified by the following makers: Toyo Rubber from Japan, QJF from China, Duarry S.A. from Spain and RF and DSB Continental from Germany.

Metallographic Laboratory

• Non Destructive Test
• Ultrasonic thickness Calibration.
• Hardness Testing.
