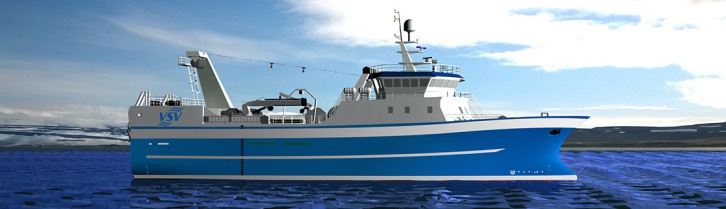

30 September 2014 Icelandic owners, HB Grandi, Vinnslustodin hf. and Hradfrystihusid Gunnvör, have ordered newbuildings based on two different ship designs from specialist fishing-vessel consultants and designers, Nautic and Skipasýn. Optimised for safety, operational economy and pulling power, the 50-metre-plus vessel series differ in their choice of specified propeller, aft-ship and propeller-nozzle configurations, apart from their principal design differences. The Nautic vessels for HB Grandi will be propelled by 4-bladed, 3.8-metre MAN Alpha CP Propellers, while the Skipasýn vessels will have larger, slower-running 4.7-metre, 3-bladed versions for a calculated bollard pull above 50 tons. Styrmir Petersen, Afltækni ehf, Reykjavik said: “We have been representing MAN Diesel & Turbo for more than 20 years as sales and service agents in the Icelandic market and now we are very pleased again to see increasing activities and investments after the financial crisis and following tough years for Iceland. Additionally, it is of course both interesting and challenging for us that we will supply new MAN products and services to two state-of-the-art, Icelandic, fresh-fish trawler designs.”
Image by MAN Diesel & Turbo High bollard pull at low propeller revolutions
Reduced consumption under more operating conditions The three Nautic-designed, 55-metre vessels for HB Grandi, which will appear with a distinctive bow design, will be built in Turkey by Celiktrans Shipbuilding Co. Ltd. As with the other series, the selected propulsion engine is MAN’s six-cylinder L27/38, accompanied by four-bladed, ducted MAN Alpha VBS 860 propeller models. A key Alphatronic 3000 control-system feature will be the tailored ‘dual-propeller load curves’ for optimising towing/trawling and free-sailing conditions. Floating frequency The specified, floating-frequency concept for both trawler series increases the flexibility and economical part-load pattern. The propulsion system is able to operate in ‘shaft-alternator mode’ with reduced engine and propeller speed (within the corresponding 50 to 60 Hz speed envelope). With this part-load optimisation feature offering up to 17% lower engine/propeller speed, fuel consumption is accordingly reduced. The L27/38 engines have perfect load and low-speed characteristics for floating frequency: high torque and approx. 50% power is available at speeds reduced from the 60 Hz load point to 50 Hz. Alphatronic 3000 The general propulsion management and control system specified for both trawler designs is MAN Diesel & Turbo’s new, advanced Alphatronic 3000 generation. The installations will be configured for complete control-station set-ups at the vessels’ main bridges, starboard bridge wings, aft bridges and engine-control rooms. MAN Diesel & Turbo, Press Release |
