MV NEWOCEAN 2
2,344 DWT Vessel
Built: 2016, Guangzhou Nansha Xinghua Shyd, China
flag: Hong Kong, China
Class: China Classification Society
SS due: 2026-04-28
LOA/Beam/Draft: 46.6/16.0/5.6
++
MV NEWOCEAN 3
3,080 DWT Vessel
Built: 2016, Guangzhou Nansha Xinghua Shyd, China
Flag: Hong Kong, China
Class: China Classification Society
LOA/Beam/Draft: 46.6/18.29/5.8
(All dtls wog)
Locations: Both situated in Hong Kong where inspectable and deliverable.
Both vessels current state is warm lay up basis, as class has expired.
Pleased to hear any Buying interest accordingly!
(ALL DETAILS GIVEN IN GOOD FAITH AND FOR INFORMATION ONLY, WITHOUT GUARANTEE/PREJUDICE)
BRGDS
KK
(As Broker Only)
NIKOLAOS G. KOKOLIS (DBA)
International Shipping & Trading
-Ship Broker Only- Since 1990
30 690 980 2279
skype phne: istc-gr
Email: snp@dry-chartering.com
Email: istc.snp@gmail.com
www.dry-chartering.com (under construction)
27 June 2022
Very close shipowner intends to sell her mpp handy which bought via us:
MV EL TETHYS (ex MAGNOLIA ,IMO 9138123) , MPP
Built: 1997, Shanghai Shipyard
Flag Panama
Class: BV DD 07/2023,SS 07/2025
DWT 34803 / ON 11.42M
Gross Tonnage 23401
Nett Tonnage 13150
LOA 192.25 m / LBP 180.00 m
Breadth moulded 26.70 m
Lightship 10,363 mt
Summer Displacement 44,085 mt
Main Engine Sulzer 8 RTA 52 / KW 12480
Auxiliaries: 3 x Wartsila 6L20 (supercharged)
Container Capacity: 1454 TEU
Holds 366 TEU / 3 tiers
TDs 256 TEU / 2 tiers
Deck 832 TEU / 4 tiers
Reefer Plug: 50 plugs - 440V, 3 phase, 60 Hz
Cargo Gears: 3x40mt + 1x80mt
Cargo Holds: 5 holds I 9 hatches
Hold Capacity Grain 45014 m3
Hatchcovers:Weatherdeck: hydraulically operated folding type Tweendeck : Pontoon type
Hold full details in hand.
G,DAY
We can develop for sale below VINTAGE HANDYMAX vsl
M/V BAO JIA - FLAG PANAMA
IMO: 9187382
DWT: 48913 MT DRAFT: 11.623 M
BUILT 1999 AT TOKYO SHIPYARD CO. LTD, JAPAN
GRT/NRT: 28073 / 16065
RINA
NEXT SS 06/2024, FRESHLY PASSED I/S AND DD , INSTALLED BWTS
LOA: 189.96 M/ BEAM: 32.20 M / DEPTH: 16.50 M
5HO 5HA
GRAIN CAPACITY 61553CBM
CRANE: 4x25 MT
M/E: SULZER 6RTA48T 7700KW
LDT: 8427 MT
BWTS FITTED (BLUE OCEAN SHIELD), USCG APPROVED
All details are given in good faith but without guarantee
Itienrary: The vessel shall load in Tianjin China where ETB in about two weeks and ETC/D 8th July.
Thereafter she will head to Red Sea for discharge where there are three discharge ports respectively
in Djibouti, Sudan and Aqaba. Reckon she will complete discharge at the final discharge port around early Sept.
(ALL DETAILS GIVEN IN GOOD FAITH AND FOR INFORMATION ONLY, WITHOUT GUARANTEE/PREJUDICE)
BRGDS
KK
(As Broker Only)
NIKOLAOS G. KOKOLIS (DBA)
International Shipping & Trading
-Ship Broker Only- Since 1990
30 690 980 2279
skype phne: istc-gr
Email: snp@dry-chartering.com
Email: istc.snp@gmail.com
www.dry-chartering.com (under construction)
21 June 2022
SHANGHAI SEA PRIDE SHIPPING SERVICES CO., LTD
E-mail: snp@sspshanghai.com
Direct from close local owner, very privately, we can develop the following newly build product oil/ bunker for sale, ppt delivery in about 3 months
the tanker is still under construction, but scheduled to be lanuched by the end of June (this month), delivery can be arranged in Aug/Sept/2022 subject to contract executed by any firm buyer.
2,900dwt product oil/ bunker tanker newly build for sale
shallow draft
Built: 2022, under construction
Flag: TBN
class: BV, flash point >60℃, Costal Area
LOA: 78m
Designed draft: 5.0m
Breadth: 13.4m
Depth: 6.7m
Deadweight: ~2,900mt
cargo oil tanks: 10
M/E: Cummins K38-M, 820Kw@1800r/min x 2 sets
G/E: Cummins
speed: 11.5Kn
endurance: more than 500nm, 6 days
The vessel can be used as bunker tanker, with minor modification.
Delivery time: vessel had been scheduled to be launched by the end of June/2022 (this month), delivery can be arranged in Aug/Sept 2022 accordingly.
Can guide on price.
We had serious discussion with the seller, considering the current USD and RMB changed rate had been increased a lot.
M'over, the seller is more realistic than before and keen to sale with basic construction cost and necessary finance cost during construction period.
Can closely guide with recent negotiation.
Best Regards
Gong
Manager Director
MOB: +86 186 2195 4888
Wechat: zero0248
whatsAPP: +86 186 2195 4888
21 June 2022
To: snp deck
From: posc s&p
Fresh Chinese state owned container ship for sale:
Ship's Name :GLORY SEASON
Flag HONGKONG
CONTAINER SHIP
Class RINA DD 9-2022, SS 9-2024
Date of Keel Laid 2005/12/16
Date of Delivery 2006-09-25
Place of Build :ZHEJIANG NINGBO BODA SHIPBUILDING CO.,LTD. , CHINA
L.O.A.131.55 M L.B.P. 122.00 M
Breadth 18.80 M Depth 9.40 M
Summer Draft 6.40 M
Summer Deadweight 7960.8 MT
Int.Gross Tonnage 6735
Int. Net Tonnage 3150
Max. Height from keel 35.10 M
Number of Holds 3
Number of Hatches 13
Total 495TEU
Homogeneous Load 356 TEU @14 MT
Container Capacity:On Deck 279 TEU, In Hold 216TEU
Reefer Plugs 40
Container intake is always subject to vessel's strength,stability and permissible weights.
Stack Weights :
on deck 35/55 T , in hold 72/91 T
Main Engine Type: SHANXI 8PC2-5L , Power 3824 KW @ 520 RPM * 1 SET
Aux. Engine Type KANGMINGSI NTA855-G2(M) @1500 RPM
Power 250 KW @ 1500RPM *3 SETS
Oil Consumption :
Main Engine IFO 180cst * 15 Mt/Day @ 14.3 Kn at sea
Aux. Engine MGO * 1.5 Mt/Day at sea, MGO * 0.8 Mt /Day at port
Steam Boiler MGO * 0.5 Mt /Day at port
Tank Capacities :
Ballast Water 3828.07 CBM
H.F.O 406.93 CBM
M.G.O. 171.92 CBM
Fresh Water 252.83 CBM
Gearless
Hatch type: PONTOON
Dimension:
NO.1 25.2 m X 15.04 m
NO.2 31.5 m X 15.04 m
NO.3 25.2 m X 15.04 m
Light Ship 3428 MT
G,DAY
We can develop for sale below GC -OPEN HATCH BOX SHAPED/SHALLOW DRAFT
M/V ADASTAR
VESSEL TYPE GENERAL CARGO /OPEN HATCH BOX SHAPED/SHALLOW DRAFT
IMO 9151515
FLAG LIBERIA
DWT 21146
BUILT YEAR / PLACE 1998 HANJIN HEAVY INDUSTRIES CO LTD - BUSAN, KOREA, SOUTH
CLASS BV
SS/DD 11.2022 11.2022
GRT/NRT 15.868/5.119
4 HO/4 HA
HATCH/HOLD DEMENSIONS
NO.1 HATCH B14,18MXL10,3M(FORE)
+B17,54MXL14,0M(AFT)
NO.2 HATCH B20,9MXL27,7M
NO.3 HATCH B20,9MXL20,79M
NO.4 HATCH B20,9MXL20,79M
NO.1 HOLD: B14,8M X L10,3M X H13,35M (FORE) (INCLUDING B17,54M X L14,0M X
H13,35M (AFT) INNER STRUCTURE)
NO.2 HOLD B20,9M X L27,70M X H13,35M (BOX SHAPED)
NO.3 HOLD B20,9M X L20.79M X H13.35M (BOX SHAPED)
NO.4 HOLD B20,9M X L20.79M X H13.35M (INCLUDING INNER STRUCTURE)
GRAIN / BALE 24.250 / 24.129 (CBM)
LOA 164,5 M
BEAM 25,6 M
DRAFT 8,1M
MAIN ENGINE MAN-B&W 7S35MC 6.650 (BHP)AT 170 RPM SHAFTGENERATOR, 3X400 KW
SPEED
BALLAST:12,0 KNT(SEA STATE 3/4 BFRT)
LADEN: 11,5 KNT(SEA STATE 3/4 BFRT)
LIGHTSHIP 5593,6 MT
ITINERARY
THE VESSEL IS ENROUTE TO ARZEW FOR LOADING THEREAFTER SHE WILL GO TO AT SETE/FRANCE FOR DISCHARGING
(ADA WOG)
(ALL DETAILS GIVEN IN GOOD FAITH AND FOR INFORMATION ONLY, WITHOUT GUARANTEE/PREJUDICE)
BRGDS
KK
(As Broker Only)
NIKOLAOS G. KOKOLIS (DBA)
International Shipping & Trading
-Ship Broker Only- Since 1990
30 690 980 2279
skype phne: istc-gr
Email: snp@dry-chartering.com
Email: istc.snp@gmail.com
www.dry-chartering.com (under construction)
20 June 2022
SHANGHAI SEA PRIDE SHIPPING SERVICES CO., LTD
E-mail: snp@sspshanghai.com

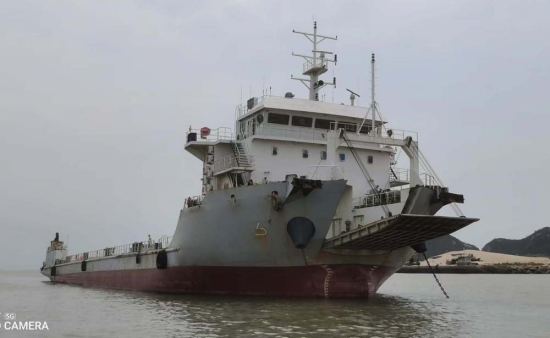

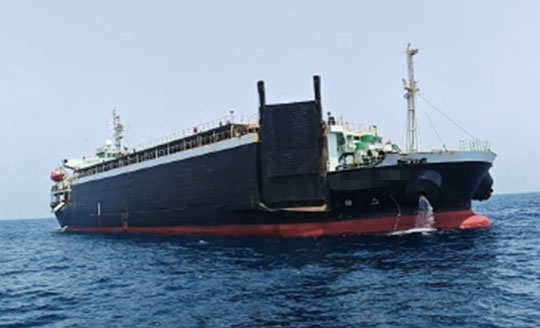

Sub: self-propelled Deck barge for sale
Direct from close local owner, we can develop following two unit self-propelled deck barge for sale at attractive price.
1) MV R.Yuan - 8.4K dwt
MPP deck barge for sale
built: May, 2016, Yangzhou China
Class: ZC
Flag: China
LOA: 113.9
Breadth: 27.3m
Draft: 5.1m
DWCC: 8,360mt
M/E:Guangchai 6320, 1,324kw X 2 = 3,600BHP
( https://gdfdiesel.com/gsjj/index_49.aspx )
G/E: Weichai WP6CD 138Kw x 2
(https://en.weichai.com/ )
Port G/E: 40Kw x 1
Emergency G/E: 60Kw x 1
Deck strength: 10mt/M2 (strengthed for heavy cargo)
Ramp, side wall fixted
(suitable for coal, general cargo on deck, and heavy projects)
Last three cargos: Wind-Turbine products (heavy project, equipment)
2) MV WB Jiabo - 5.3K self-propelled Deck barge for sale
built: April/2021, China
flag: China
Class: ZC (A1+A2)
LOA: 103m
Breadth: 20.5m
Depth: 5.8m
draft: 4.3m
DWT: 5,300mt
DWCC: 4,979mt
M/E: Ningdong 6210, 1500BHP x2 = 3,000BHP
(https://www.ningdong.com/site/index?lang=en)
D/E: Weichai WP10CD, 240Kw x 2
Port use D/E: WP4CD, 60Kw x 1
Emergency D/E: WP4CD100E, 90Kw x 1
Shaft Generator: 50Kw x 1
(https://en.weichai.com/)
previous cargos: Wind-turbo products
Can closely guide on price for both vessel.
FYI, Due to Covid-19 restriction in China: as shipping services company for around 20 yrs, we can provide full package of local services for your buyer if need it with separate service contract, such as:
physical inspection with SnP inspection report;
to taking over the vessel as buyer's representative;
to arrange crew manning after delivery, to sail the vessel from China to buyer's destination;
Generally can do any other jobs required by the buyer (such as purchasing spare parts, store, etc.)
Best Regards
Gong
Manager Director
MOB: +86 186 2195 4888
Wechat: zero0248
WhatsAPP: +86 186 2195 4888
20 June 2022

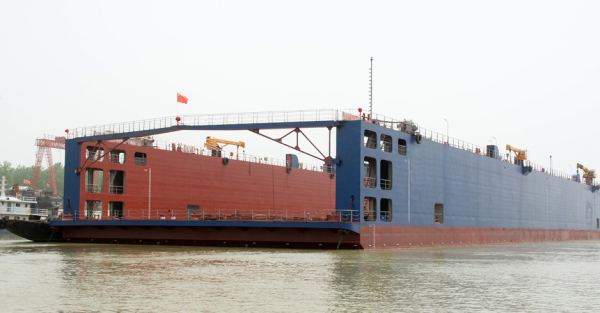

We can develop the following Caisson Floating dock from direct owner :
CAISSON FLOATING DOCK PARTICULARS
- TYPE : FLOATING DOCK (Caisson Deck for Caisson)
- FLAG : Korea
- Class : KRS
- Built / Country : 2015 / Hyundai, Korea
- Total Lifting Capacity : 20,000 Tons,
- Max. draft : 5.70 m
- Length(Overall) : 76.0 m
- Breadth(out) : 60.0 m / Breadth (In) : 48 m
- Pontoon deck(MLD) : 6.0 m
- Safety deck(MLD) : 32.7 m
- Top deck (MLD) : 36.5 m
- Working Cond. (D.L.W.L) : 5.70 m
- Ballast Pump : 3,000m3/h x 12m x 180 kW
- Deck crane : 25 ton x 43m, 15m/min (Elec-Hyd. type) x 2 sets
- Generator : 800 kW x 2 sets
- Windlass : Elec.-hyd. type, 40 Ton x 4 sets
- Winch : Elec.-hyd. type, 30 Ton x 4 sets
- Inspection Place : Middle East
Sincerely,
James Han
ANY Maritime Co., Ltd.
#1117 Hanseo River Park, 11-11 Yoido-dong, Youngdeoungpo-gu,
Seoul, 150-746, Korea.
Tel : +82 2 6092-8147~9 / 070-7663-3251
Fax : +82 2 6092-8150
Mobile : +82 10 5173-8823
URL : www.anymaritime.com
E-mail : snp@anymaritime.com
17 June 2022
Good day Dear Sirs,
Direct from close owners, we can secure for sale the 6250dwt oil/chemical tanker.
Construction of mentioned tanker was already completed but the vessel never be used. She was designed & constructed for transport of oil products and noxious liquid substances.
M/T: TBN
6250 DWT PRODUCT Oil / CHEMICAL TANKER (IMO II)
DESIGN DRAFT: 6.0M
NAVIGATION AREA: UNRESTRICTED
CLASS NOTATION: BV, I +HULL, +MACH, ESP, AUT UMS, Unrestricted Navigation, Tanker for Oil Products, IMO II Chemical tanker, Inwater Survey, Mon-Shaft, CargoControl, AVM-APS.
BUILT IN CHINA(the ship isn't registered yet)
MAIN DIMENSION:110.4 /104.4 x 15.8 x 8.25M
MAIN ENGINE: GN8320ZC6B 3000KW@600RPM(Chinese brand)
PROPELLER: CPP
SPEED: 13 KNOTS at 90% MCR
GENERATORS: CUMMINS 360KW x 3 SETS
BOW THRUSTER: 350KW (FPP)
ACCOMMODATION: 20 PERSONS
PROVISION/RECOVERY CRANE: SWL 2T@6M
HOSE HANDLING CRANE: SWL 3T@15M
CARGO SYSTEM:
3 SEGREGATION
CARGO CONTROL ON POOP DECK
CARGO TANKS: 6 PAIRS(EPOXY COATED)
BWTS: WILL BE INSTALLED BEFORE DELIVERY
LOCATION: SHIPYARD IN CHINA MAINLAND
DELIVERY: PROMPT
The owner is keen seller, can guide price upon interested buyers name with background information.
PS: For pre-purchase inspection, since the location of the vessel is in China mainland, please be aware of the China local quarantine measure if buyers will dispatch inspectors from outside of China. Alternatively, we can assist you to connect with the local independent inspection team upon buyers request.
Trustern SNP Inc., Seoul.
SnP Broking & Shipping
Rm.726, 127 Mapo-daero, Mapo-gu
Seoul, 04144, Republic of Korea
15 June 2022
Dear Sirs,
Good day
Direct with local owners, we can develop for sale several vintage handysize bulkers as follows;
a)
27209DWT ON 9.916M DRAFT
BLT 6/1995 HANJIN HEAVY INDUSTRIES
NK
SS: 06/2025
DD: 09/2023
BWTS due: 31 Aug. 2022
C: 4 x 25mt
MAN-B&W 5L50MC -7450 BHP AT 122 RPM
GENS 3
b)
24842DWT ON 9.819M DRAFT
BLT 5/1995 NAIKAI ZOSEN CORPORATION SETODA SHIPYARD
NK
SS: 07/2025
DD: 06/2023
BWTS due: 8 Aug. 2022
C: 4x30mt
MAN-B&W 6L42MC -7110 BHP AT 154 RPM
GENS 3
c)
28395DWT ON 9.673M DRAFT
BLT 6/1997 HAKODATE DOCK CO., LTD
NK
SS: 06/2022
DD: 06/2022
BWTS due: 10 Jul. 2022
C: 4x30mt
MAN-B&W 6S42MC -8370 BHP AT 136 RPM

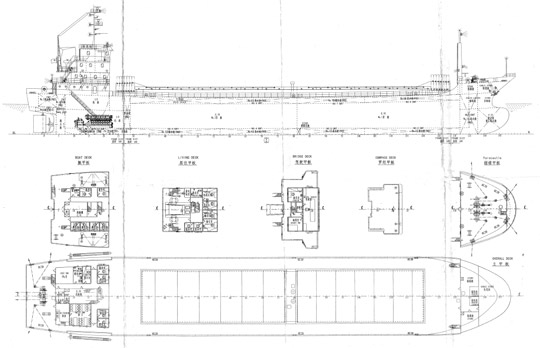

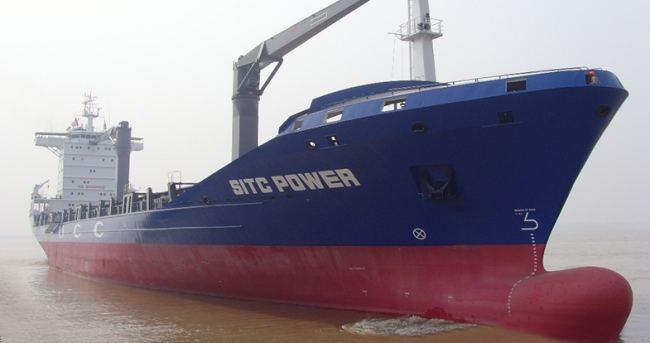

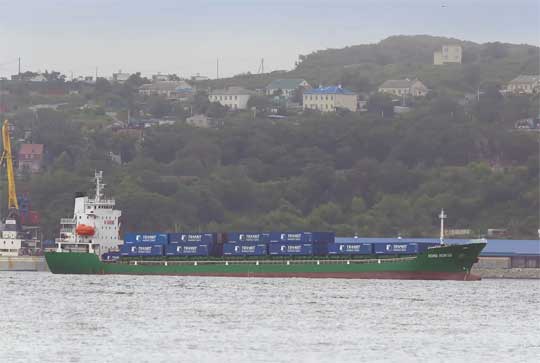

Fresh Chinese state owned container ship for sale:
Ship's Name :GLORY SEASON
Flag HONGKONG
CONTAINER SHIP
Class RINA DD 9-2022, SS 9-2024
Date of Keel Laid 2005/12/16
Date of Delivery 2006-09-25
Place of Build :ZHEJIANG NINGBO BODA SHIPBUILDING CO.,LTD. , CHINA
L.O.A.131.55 M L.B.P. 122.00 M
Breadth 18.80 M Depth 9.40 M
Summer Draft 6.40 M
Summer Deadweight 7960.8 MT
Int.Gross Tonnage 6735
Int. Net Tonnage 3150
Max. Height from keel 35.10 M
Number of Holds 3
Number of Hatches 13
Total 495TEU
Homogeneous Load 356 TEU @14 MT
Container Capacity:On Deck 279 TEU, In Hold 216TEU
Reefer Plugs 40
Container intake is always subject to vessel's strength,stability and permissible weights.
Stack Weights :
on deck 35/55 T , in hold 72/91 T
Main Engine Type: SHANXI 8PC2-5L , Power 3824 KW @ 520 RPM * 1 SET
Aux. Engine Type KANGMINGSI NTA855-G2(M) @1500 RPM
Power 250 KW @ 1500RPM *3 SETS
Oil Consumption :
Main Engine IFO 180cst * 15 Mt/Day @ 14.3 Kn at sea
Aux. Engine MGO * 1.5 Mt/Day at sea, MGO * 0.8 Mt /Day at port
Steam Boiler MGO * 0.5 Mt /Day at port
Tank Capacities :
Ballast Water 3828.07 CBM
H.F.O 406.93 CBM
M.G.O. 171.92 CBM
Fresh Water 252.83 CBM
Gearless
Hatch type: PONTOON
Dimension:
NO.1 25.2 m X 15.04 m
NO.2 31.5 m X 15.04 m
NO.3 25.2 m X 15.04 m
Light Ship 3428 MT

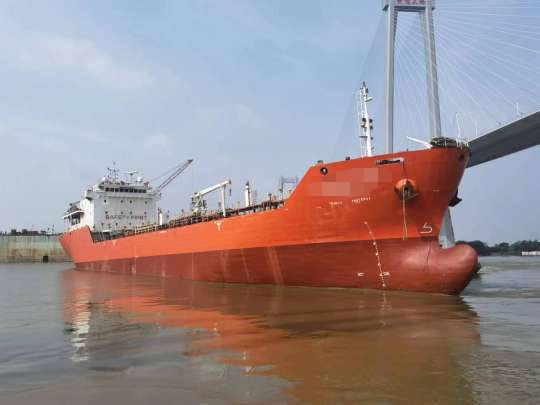

CHEMICAL TANKER
24.000 DWT
Year : 2012
Condition unused (new building)

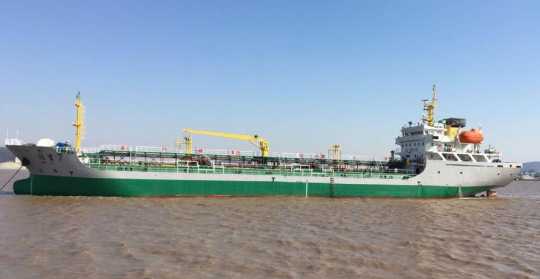

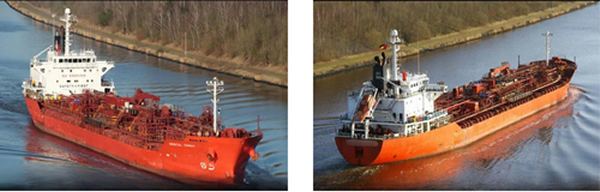

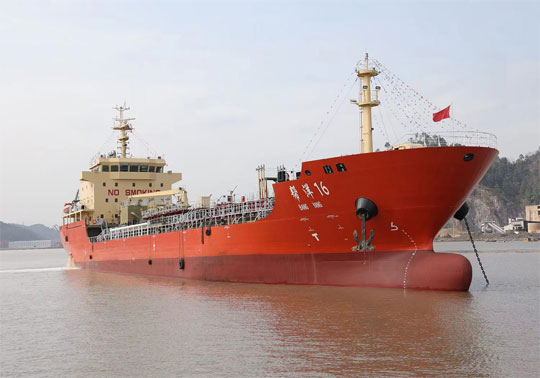

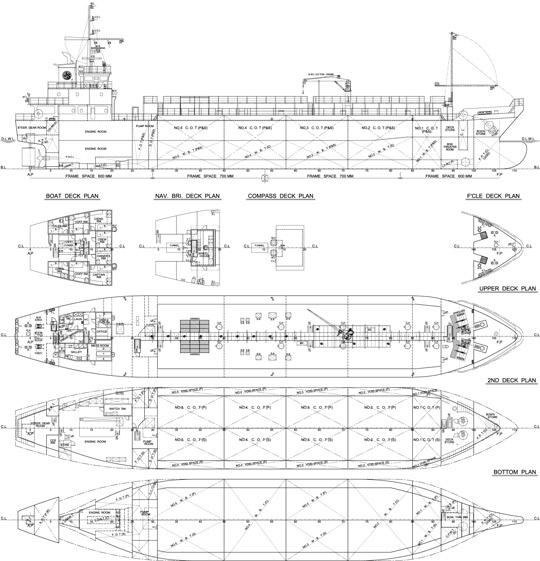

OIL CHEMICAL TANKER (IMO II)
6200 DWT
Year : 2012
Condition unused (new building)
14 June 2022
Attiki Greece
AT SALE AND PURCHASE DESK
G,DAY
We can develop for sale below 2 x KAMSARMAX & 2 x HANDYSIZE BULKERS
M/V DL OLIVE - FLAG: LIBERIA
ABT 35,194 DWT ON 9.90M DRAFT
BLT: 12/2013 SPP SHIPBUILDING CO LTD, S. KOREA
CLASS: KR - SS/DD DUE DEC 2023
LOA: 180.11M / BEAM: 30.05M
ABT 48,550 CBM GRAIN / 46,385 CBM BALE
5 HO / 5 HA
GEAR: C 4X35T GRABS: YES
M/E: MAN B&W 6S46MC-C8 MC-C9,109
LDT: 8,437 LT
BWTS FITTED (HANLA IMS)
- IDWAL REPORT available against named interests.
- Vessels on t/c till end July- Sept 2022
- Delivery date to be discussed, asap within 3 months after signing MOA
- Delivery place AG-JPN range, try dely either at South Korea or Singapore
SISTERSHIP, M/V DL LAVENDER - FLAG: LIBERIA
ABT 35,194 DWT ON 9.92M DRAFT
BLT: 01/2014 SPP SHIPBUILDING CO LTD, S. KOREA
CLASS: KR - SS/DD DUE JAN 2024
LOA: 180.11M / BEAM: 30.05M
ABT 48,550 CBM GRAIN / 46,385 CBM BALE
5 HO / 5 HA
GEAR: C 4X35T GRABS: YES
M/E: MAN B&W 6S46MC-C8 MC-C9,109
LDT: 8,437 LT
BWTS FITTED (TECHCROSS)
- IDWAL Report available against named interests
- On t/c till end Aug - Oct, 2022
- Delivery date to be discussed, asap within 3 months after signing MOA
- Best offers are invited bss cfree delivery AG-JPN range, int. South Korea
or Singapore
(All details given in good faith but without guarantee)
+++++
DL CARNATION
ABT 81,805 DWT ON 14.45M Draft
BLT:09/2014 Jiangsu Eastern Heavy Industry CHR
Class: KR - SS 2024-09-02 DD 2022-07-02
Loa: 229.00M / Beam: 32.30M
7 HO / 7 HA
ABT 98,515 CBM Grain / 90,784 CBM Bale
M/E Type: MAN B&W 6S60MC-C8 MC-C15,676
Speed & Consumption: 13.50L(A)
- Tier II complied
- BWTS on order (Hanla IMS). Can be novated at a cost
- Presently at Pohang, South Korea
- Trading spot
- Can deliver AG-JPN range 3 months after signing MOA. Sellers intention is South Korea or Singapore
- IDWAL report readily available to purchase for USD 1500
- Offer deadline to be guided
sistership DL IVY
ABT 81,805 DWT ON 14.47M Draft
BLT:10/2012 Jiangsu Eastern Heavy Industry CHR
Class: KR - SS 2022-09-26 DD 2022-09-26
- Tier II complied
- BWTS on order (Hanla IMS). Can be novated at a cost
- Presently enroute Newcastle, Australia
- Presently on TC until mid June 2022
- Can deliver AG-JPN range within July - August 2022. Sellers intention is
South Korea or Singapore
- IDWAL report will soon be available to purchase for USD 1500
- Offer deadline to be guided.
(ALL DETAILS GIVEN IN GOOD FAITH AND FOR INFORMATION ONLY, WITHOUT GUARANTEE/PREJUDICE)
BRGDS
KK
(As Broker Only)
NIKOLAOS G. KOKOLIS (DBA)
International Shipping & Trading
-Ship Broker Only- Since 1990
30 690 980 2279
skype phne: istc-gr
Email: snp@dry-chartering.com
Email: istc.snp@gmail.com
www.dry-chartering.com (under construction)
12 June 2022
Dear Sirs,
Good day,

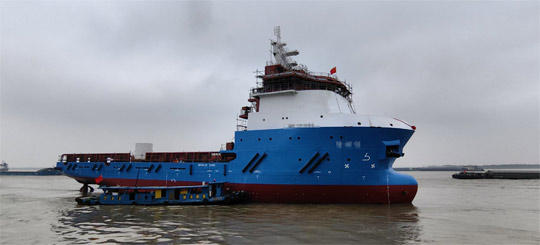

From local owners we can develop for Resale OR charter the following newly-built DSV with large Accommodation,full description as follows;
LOA 145.90m
Beam 27.00m
Depth 11.30m
Draught 7.50m
Trial Speed 14.5 knots
Working Deck 1,850m2
Deck Strength 15t/m2
Deck Load 5,000t @ 1m
Fuel Oil 2,300m3
FIFI II system 3,600m3/hr.
General--DNVGL class notations
+1A1, ICE-1C, DSV-SAT, DSV-SURFACE,DYNPOS AUTRO,
DYNPOS ER, EO, SF,DK(+), COMF V(3) C(3), BIS, FiFi II, BWMT,
NAUT-OSV(A), SUPPLY VESSEL (Hull Only),HELDK-SH(CAAN),
RECYCLABLE,OFFSHORE SERVICE VESSEL+, CLEAN
DESIGN,SPS 2008, Compliance with MODU Code and MOU
Regulations
Diving System& Spread
24man, Fully Automated, DRASS 300MSW Diving System:
Twin Bell and Twin 24man SPHL’s
Full NORSOK Capabilities / DNVGL Classed
High Efficiency Diver and Chamber Gas Reclaim Systems
Total Gas Storage of approx. 40,600Nm3
Dedicated Diving Emergency Bell Mate Trunk on Main Deck
Designed for a Significant Wave Height of 5.5m with Heave
Compensation
3 Diver Air/Nitrox Surface Diving Spread (Pt Side):
2 x Dedicated A-Frame LARS (1x Main and 1x Standby Diver)
1x Dedicated A-Frame Tooling LARS (with 2x CT and 1x
standard winch)
1x Dedicated Triple Drum Winch (for hose deployment)
Hoop Diving Facilities Prepared for Operating 33m from Ship Side.
ROV Hangars
Fully equipped to supply all services to 2x A-Frame or Gantry
Launch WROV’s Systems.
Accommodation
POB of 200 persons meeting MLC 2006 regulations
20x Single Cabins
8x Double Cabins
41x Two plus Two (Pullman Bunks)
Can be easily reconfigured, at Client Request.
Wheelhouse
Kongsberg K-Master system
Kongsberg K-Bridge system
! 2x VSAT Domes
Divers Moonpools
2 off - 5.4m x 4.2m Located Pt and Stbd
Working Moonpools
7.2m x 7.2m Strengthened for Vertical Lay Tower System
Working Moon pool area 50t/m2.
Electric Propulsion
6x 2,600kWe, 6.6kV, 3Ph, 60Hz
Emergency/Harbour Set 860kWe
Dive Emergency Gen Set 860kWe
Complete with SIEMENS Dual In-Feed Concept
Cranes
400t Offshore Rated Knuckle Boom Crane:
400t Single Fall with AHC/AT Main Hoist
Winch
Both with Working Operating Depths of
3,000m (single fall)
! 25t Offshore Rated Knuckle Boom Crane:
25t Single Fall with AHC/AT Hoist Winch
Working Operating Depth of 600m
10t Offshore Rated Telescopic Crane (Pt
Side&Stbd Side):
Suitable for Hoop Diving Requirements.
Full Anti-Heeling System Installed
2x Active Roll Reduction Tanks Installed.
Kongsberg DP System
Main DP – K-Pos DP-22 (+K-Thrust and KChief)
Alternative DP – K-Pos DP-12
Emg Back Up – K-Pos DP 12
DP Reference System:
3x DGPS, 1x Radius, 1x CyScan,
2x Taut Wires, 1x HiPAP 501, 1x Sonardyne
4x Wind Sensors, 4x Gyros, 4x MRUs
1x Transponder deployment system (3,500m)
2x Spare HiPAP Trunks
DP3 and DP Enhanced Reliability (ER) =
Maximum Flexibility when considering
Operational Requirements
ERN 99,99,99,99
Helideck
Diameter: 28.75m
MTOW: 15.6t (S61/S92/EH101)
Compliance with: UK CAA, NMD, DNV and CAP437.
Location: China mainland
Further discussion only for firm/named Buyers/Charterers interest.
